Due: 5 pm Tuesday 8 October 2019
Summary: You will program a MIPS32 microprocessor in MIPS assembly.
Collaboration: You will work during lab in randomly assigned pairs. You must complete the work together in these groups, whether during or after the scheduled lab time.
Submitting: After completing each exercise, show your completed work to the instructor or a course mentor. If you are unable to complete the lab during class time, schedule a time during office hours to demonstrate each of your problems.
Starting in this week’s lab, we will be working with the PIC32 processor and the Microstick development board. The PIC32 is a popular line of microcontrollers that implements the 32 bit version of the MIPS instruction set, the same instruction set covered in our textbook. In this lab we will learn to use the MPLAB IDE to assemble code and download it to the Microstick, how to step through a program’s execution using the MPLAB Debugger, and how to use the PIC32’s port I/O to interact with circuits on your protoboard.

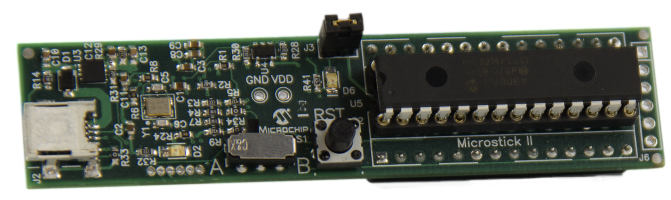

The specific processor we are using is the PIC32 MX250F128B, along with the Microstick II development board. The Microstick II, with a processor installed, looks like this:
The microprocessor is the large component on the right. While there are many standard layouts (or “packages”) used for microprocessors, observe that the processor shown is in an SPDIP package, with two parallel rows of pins, similar to the TTL logic chips you have already used in lab. The physical form of the Microstick II development board means it can be easily plugged into our protobards and connected to other electronic components.
The devices used in this lab are based on CMOS technology, and as such, they are more sensitive to small static shocks than are the TTL logic chips we used previously. Even a shock that you don’t feel can damage the chip, so please avoid touching the microprocessor with your fingers. Please also be careful not to drop anything metal (e.g., wires, rings, or paperclips) onto the development board as this could also damage the board or the chip by causing a short circuit.
As you work through this lab, you may want to refer to the following references:
When you are ready to begin your lab work, go to the equipment cabinet and grab a Microstick II (in a small red and black box) and a protoboard. You will not need the protoboard’s power cable today; all the power for our circuit will come from the Microstick.
Take a good look at the Microstick II development board. Identify the PIC32 microprocessor. Moving upward, you should also see a round button, which is the reset (or “RST”) button, which is used to restart the microprocessor from its initial state. The PIC32 will begin executing whatever program it last received as soon as it gets power. Pressing the RST button will restart the program. Above this is a switch with positions labeled A and B. For our PIC32, we want the switch in position A (some other PIC32 processors use different pins to connect to the computer, and the Microstick supports both using this switch). Above the toggle switch is a small green LED which indicates whether the board has power. Above the LED is a USB connector, which is used to power, program, and debug the board.
Plug the microstick into the protoboard so it crosses a gap in the breadboard; you do not want to connect the two columns of pins. To make sure pin positions match the documentation, orient your Microstick so the A/B switch and RST button are on the left, and the USB cable is at the top (furthest away from you). Once the Microstick is in place, use the USB cable in your box to connect the board to your computer. Verify that the power LED is lit.
Log in to your MathLAN workstation if you haven’t already. There are two ways to start MPLAB, from the terminal or via the menu.
mplab_ide &Once MPLAB has started up, follow these steps to create a project:
If the window complains about an invalid folder (in red text) and the Finish button is disabled, you will need to reboot your host machine and start MPLAB and the project creation process again.
Next, we will add a source file to the project. This file will use the .s extension, which tells MPLAB to build it using the MIPS assembler. Please pay close attention to file extensions in MPLAB!
add.s and click Finish.The add.s file should appear under source files in your IDE. Double click the file to open it, and paste in the following code:
# add.s
# Written by Jan Erik Larsson, 27 October 1998
# Adapted by Janet Davis, 6 October 2013
# Modified by Charlie Curtsinger, September 2017
.set noreorder # Avoid reordering instructions
.text # Start generating instructions
.globl main # The main label should be globally visible
.ent main # The label marks an entry point
main:
li $s0, 0x1 # Load the value 1 into $s0
li $s1, 0x1 # Load the value 1 into $s1
add $s2, $s0, $s1 # Add the values
nop # Do nothing
.end main # Marks the end of the programThe first four lines of this program are directives that tell how the program should be translated by the assembler.
The three lines starting after the label main produce actual machine instructions. You should be able to explain what these instructions mean and what the program does when executed.
The li pseudo-instruction takes an immediate value and loads it into a register. Before converting to machine code, li is translated to the actual instruction addiu $s0, $zero, 0x1.
Comments are preceded by #. All the programs that you write for this course should include informative comments. Try to be consistent with your use of whitespace.
To build and run this program on the PIC32, click the big, green, right-pointing arrow button (▶) at the top of the IDE. This will compile the program, and if it compiles without errors, it will program the device and start executing the code.
If this is the first time the microprocessor has been used, the IDE will go through several steps to not only download your code to the device, but also to download appropriate firmware. This process is complete when you see the text “Programming/Verify complete” in the Output tab on the bottom of your screen. If you don’t see this text, ask for help.
There are a few warnings that could pop up at this stage. You can ignore warnings about serial numbers and device IDs not matching, but please ask for help if you receive any warnings about programming or communicating with the Microstick.
Assuming the programming finishes successfully, the microprocessor is now running your code. Unfortunately, our simple addition program has no visible effects. We will get to blinking, but first we will use the Microstick II’s onboard debugger to step through the program as it executes.
We will use the debugger to step through our program line by line and view the corresponding changes to the values stored in the microprocessor’s general purpose registers.
Click the line number next to the first li instruction to set a breakpoint. A breakpoint tells the debugger to stop before executing the indicated instruction.
In addition to setting breakpoints (which should be familiar from GDB), the MPLAB debugger allows us to view the values in each MIPS register. Follow these steps to set this up:
BadVAddr. Note that these registers do not have addresses; they are not accessible through typical assembly language instructions.r00, otherwise known as zero. Keep scrolling until you find r16, r17, and r18, otherwise known as $s0, $s1, and $s2.Under the “Debug” menu, click “Debug Main Project”. This will rebuild your program for use with the debugger and also configure the microprocessor appropriately. You will probably be asked whether you want to disable the “Watchdog Timer” during this session; you can select “Yes”.
At the end of the build process, you should see the words “Target Halted” in the Output tab, which indicates that the microprocessor is halted and waiting for you to tell it what to do next. You should also see that the first line of your program is highlighted in green, and there is a green arrow over the red breakpoint square to the left of the program. The green arrow and highlighting indicate the instruction that will be executed next. (Unfortunately this UI does not have universally accessible design because many people cannot distinguish red and green colors. Please ask for assistance in locating these if you cannot identify these regions by their colors.)
Click on the CPU Registers tab to go back to inspecting the values stored in the registers. Make sure you can see the registers used by your program. This view, along with the source view, will show you the effect of each instruction you execute in debug mode.
Step into the current instruction by clicking the toolbar button with an orange arrow pointing down inside a blue box, or by touching the F7 key. (You might not see this icon if your window isn’t wide enough; you can also find it under the Debug menu as “Step Into”.) You should see the green highlight move down to the next line of your program. MPLAB will also show you the updated value in register $s0.
Step through the next two instructions and make sure you can see updates to the registers.
Now, the nop instruction should be highlighted. What do you think will happen when you reach the end of the program? Step once more and find out.
Click the stop button (“Finish Debugger Session”) to halt the program execution and exit the debugger.
Add a jump instruction that will cause an endless loop. After the add instruction, add the instruction j main to jump back to the first instruction. Leave the nop as the last instruction (you might recall that jump instructions take two cycles to execute on the PIC32; therefore we use the nop to fill in the extra cycle.) Re-assemble and debug your program. What happens when you step through the program line by line? How can you stop it?
Modify the program so that it does something a bit more interesting. Instead of performing the same addition over and over, have the program continually add 1 to the same register, so that it counts up as the program executes. Use the debugger to Step through your program and verify that the value of the register increases on each pass through the loop. After how many loop iterations will overflow occur?
After completing this modification to the original program, have the instructor or a mentor sign off on your work. Don’t forget to write comments in your assembly!
Modify your program so that it counts by 2, 5, or another small integer, instead of counting by 1.
After completing this modification to the original program, have the instructor or a mentor sign off on your work. Don’t forget to write comments in your assembly!
The first program uses only internal registers. However, the second program will take advantage of the PIC32’s input/output pins to turn an LED on and off. Pay close attention to the instructions for this part; there are quite a few details that you have to get right for the code to work!
Create a new project named blinkonce using the same process as before. As you finish creating the project, set it as the main project. You can do this in the new project dialog, or by right-clicking on the project in the IDE.
Create a new source file named blinkonce.S. Make sure you use the suffix .S and not .s. This is required because our second program will use named constants. These constants are replaced with actual values using the C preprocessor, and only .S files are run through the C preprocessor. If you use a .s extension by accident you will have to delete the file and create a new one; MPLAB does not allow you to change the extension of an existing file.
Paste the following code into blinkonce.S:
# blinkonce.S
# Written by Janet Davis, 6 October 2013
.set noreorder # Avoid reordering instructions
.text # Start generating instructions
.globl main # The label should be globally known
.ent main # The label marks an entry point
#define ON 0x1
#define OFF 0x0
main:
la $s0, TRISA # Load the address mapped to the TRISA control register
li $t0, 0
sw $t0, 0($s0) # Store the value 0 to all bits of the TRISA register,
# setting all bits of Port A as output
la $s0, LATA # Load the address mapped to the LATA control register
li $t0, ON
sw $t0, 0($s0) # Write to LATA, turning the LED on
li $t0, OFF
sw $t0, 0($s0) # Write to LATA, turning the LED off
nop # Do nothing
.end main # Marks the end of the programThe la pseudo-instruction is similar to the li pseudo-instruction, but loads a memory address (known at link time) rather than a constant. See John Loomis’s notes on load immediate, add/subtract, and logic operations for further discussion and examples.
This program will work because the Microstick II connects the first pin of Port A—one of two one-byte “ports”, a sequence of 8 pins—to an LED built into the board. Interacting with the port is a bit strange; there are two main steps:
TRISA is the location of a memory-mapped register (just a special location in memory) that controls whether the Port A pins should act as inputs (1) or outputs (0). By writing all zeros to this location, we have set up eight output pins. This only has to happen once at startup; we can turn the pins on and off all we like once they are set up as outputs.LATA constant is the location of another memory-mapped register. With this location, writing a 1 to any of the bits will turn on the corresponding pin, and writing a 0 will turn the pin off. You can see the program above stores ON to this location to turn on the first bit, and stores OFF to turn the first bit off.Debug the program, executing it step by step. Investigate what happens to the register values. (You may need to make the status pane a bit bigger to see all the registers at once.) Also observe that the Microstick II’s onboard user LED, which is red, blinks on and then off as you single-step through the code.
In the CPU Memory pane, choose to inspect the Peripheral Memory instead of the CPU Registers. Sort by name and find the LATA register. What is the address corresponding to LATA? What value is stored there? Step through your program again and see how the value changes.
Let’s try connecting an external LED to pin 0 of Port A. 1. In the PIC32MX1XX/2XX Family Data Sheet, find the pin diagram for the 28-pin SPDIP package on page 5 (Table 4). Focus on the diagram at the top of the page, which is for the PIC32MX2XX product series.
In the pin diagram, find pins labeled for pin 0 of Port A (RA0) and for ground (VSS). Make note of the pin numbers.
Grab a green LED and a 150Ω resistor from the supply cabinet. Build a circuit connecting the longer power lead of the LED to RA0, the shorter ground lead of the LED to the resistor, and the resistor to VSS.
Use the debugger to step through your program again. Verify that the green LED turns on and then off again, along with the red LED on the Microstick II, as you step through the appropriate instructions.
Use your MIPS assembly skills to add a loop to this program so it will repeatedly turn the LED on and off as you single-step through it with the debugger. Once your modified program works, have the instructor or a mentor sign off on your code. Don’t forget to write detailed comments in your assembly!
Now that you have a working understanding of the PIC32 and the MPLAB development environment, you will use these processors to test implementations in MIPS assembly. Specifically, you will write MIPS assembly to manipulate bits in the PIC32 registers. For each problem below, write the MIPS code you believe will perform the requested task, add this code to your MPLAB project (somewhere in your blinkonce.S file would be fine), and then test the code on a few inputs using the debugger. Once you have completed all four problems, raise your hand and have the instructor or a mentor check off your implementations.
Given a value in register $s0, write code that stores 1 into $s1 if bit four of $s0 is on, and a 0 into $s1 if bit four of $s0 is off. Remember that we count bits starting from zero, so bit four is the 16s place. For example, if $s0 is 48, $s1 should be set to 1. If $s0 is 129, $s1 should be set to zero.
Given a value in register $s2, load a value into register $s3 that has the inverse of all 32 bits in register $s2.
Given a value in register $s4, load the same value into $s5, but with bits 16–31 turned off. For example, if $s4 is set to 4294967295 (which is 0xFFFFFFFF in hexadecimal), $s5 should be 65535 (or 0x0000FFFF in hexadecimal).
Using any temporary registers you may need, copy bits 12–19 (inclusive) from $s6 and write those values into bits 4–11 of $s7, without changing its other values. For example, if $s6 contains 0x00EFA5A5 and $s7 contained 0x1234567, your assembly would cause $s7 to contain 0x1234FA7.
